INTELLIGENT LIGHTING

Customisable with different colours and intensity levels, this system creates an atmosphere that helps patients relax and indicates device status at every stage of positioning and scanning.

HIGH-RESOLUTION 3D PANEL

The latest NEWTOM 3D panel adopts a technology that seamlessly integrates with NEWTOM GiANO HR pre- and post-processing protocols, allowing users to capture even the smallest details, such as variations of dental roots, canal fractures, or bone anomalies. The thus-obtained 3D acquisitions ensure more precise diagnoses, optimal treatment planning and monitoring of clinical conditions, always with the utmost attention to patient health and well-being.

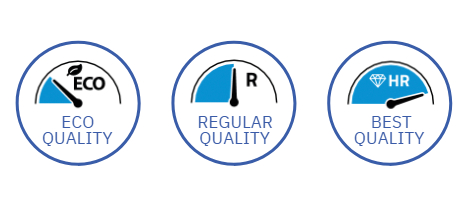

OPTIMISED 3D SCANNING PROTOCOLS

Each FOV can be adapted to meet any clinical need thanks to a choice of three protocols: ultra-low dose for surgical follow-ups, standard for treatment planning, very high levels of detail for micro-structure analysis.

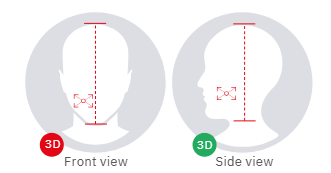

SCOUT VIEW SYSTEM

Allows two images (lateral and frontal) of the patient to be obtained with minimal exposure. Practitioners can then modify the 3D scanning area through precision servo-assisted movements of the machine controlled from their workstation, thus avoiding the risk of having to repeat the scan.

360° SCANNING TECHNOLOGY

360° scans and optimised algorithms always ensure the best outcome. This image acquisition technique yields high quality images and considerably reduces artifacts, with short scan times.

AMAR (AUTOADAPTIVE METAL ARTIFACT REDUCTION) FILTERS

These can recognise metal elements and, via special software, generate an additional set of images in which artifacts are minimised. Highly useful for planning specialist treatments that require segmentation of anatomical structures.

ESSENTIAL CONFIGURATION

NEWTOM GiANO HR comes, as standard, with a range of FOVs wide cover multiple treatment areas: endodontics, implantology, orthodontics and general dentistry.

• FOV: 6x6; 8x6; 8x8; 10x6; 10x10; 11x8; 13x6; 13x10


SUPERIOR CONFIGURATION

Together with the Essential configuration, the Superior FOV range extends the scope for treatment to the gnathology, otolaryngology and the maxillofacial field, including scans of both adult temporomandibular joints.

• FOV: 13x16; 15x6; 15x10; 15x16

• FOV: 17x10; 17x14; 17x18

TMJ PACK

For detailed, high-resolution diagnosis of both temporomandibular joints or bilateral examination of the ears and petrous bones. Optional pack that can be paired with the Essential configuration.

• FOV: 15x6; 15x10




CERVICAL & EAR PACK

For high-definition analysis of the inner ear and petrous bone, and any dysplastic, inflammatory or trauma-related pathologies affecting the cervical spine. Optional pack that can be paired with the Superior configuration.

• FOV: 7x6; 9x9; 9x16

ENDO PACK

For endodontic and implantology analysis at maximum resolution, reaching 50 µm (Voxel). Limits the area exposed to X-rays and so minimises the emitted dose, most importantly with paediatric patients. Optional pack that can

be paired with the Essential and Superior configurations.

• FOV: 4x4; 5x4

Allows a complete, accurate view of the dental arches, maxillary sinuses and temporomandibular joints. The ORTHO version significantly improves the view of interproximal spaces.

Provides clear, detailed images that are limited to the dentition area, in whole or in part: their orthogonality and definition are perfect for periodontal assessments.

Optimised collimated interproximal projection with a low dose to investigate dental crowns. An alternative to intraoral bitewings, with a less invasive, more comfortable procedure.

Creates an image that allows dentists to assess the health of the maxillary sinuses. To be effected with dedicated sub-nasal support.

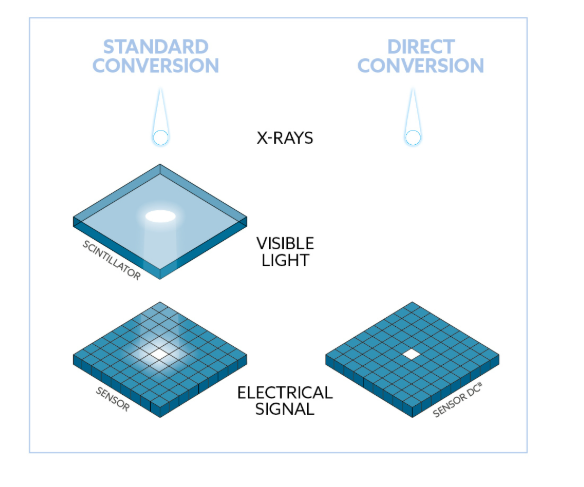

DCIII CEPH Ultra HD AND ECO

DC technologyallows practitionersto perform Ultra HD CEPH scans, almost tripling the contrast level at a given resolution, dose remaining equal. For surgical follow-ups or paediatric examinations, the ECO option allows ultra-fast scans, high-res, low-dose postero-anterior views included.

LATERAL SKULL TELERADIOGRAPHY (LL)

Allows highly detailed imagesofbone structures and soft tissues, providing essential data for cephalometric studies.

investigate the presence of any asymmetries or malocclusions for optimal completion of the required patient treatment.

evaluating the residual bone growth potential to better predict the development of maxillary and mandibular bones. Scanning can be performed with a dedicated support.

Available for both 2D and 3D scanning, these protocols provide accurate images but with lower doses than in standard scans.

They are the ideal tool for post-operative monitoring and identification of any macro-structures (such as impacted teeth and agenesis) and, more generally, for all situations where the X-ray dose must be kept to a minimum.

patients' heads and, together with the two supplied bites, ensures proper positioning of the arches, a high-quality final result and diagnostic repeatability of scans, even with edentulous persons, children or patients without incisors.

Laser beams also let users perform direct, precise, on-patient selection of the most suitable FOV height or check whether the selected FOV is suitable prior to exposure.

COOLING SYSTEM

Allows maintenance of high-quality, accurate 2D and 3D images even during continuous use, maximising performance and minimising the risk of any machine downtime.
